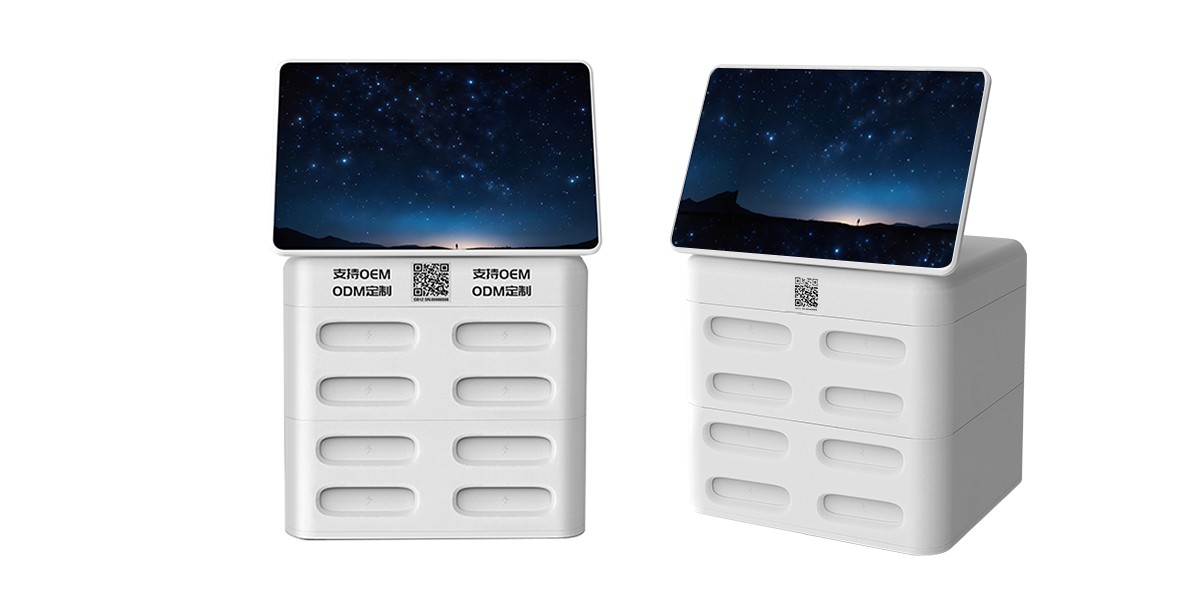

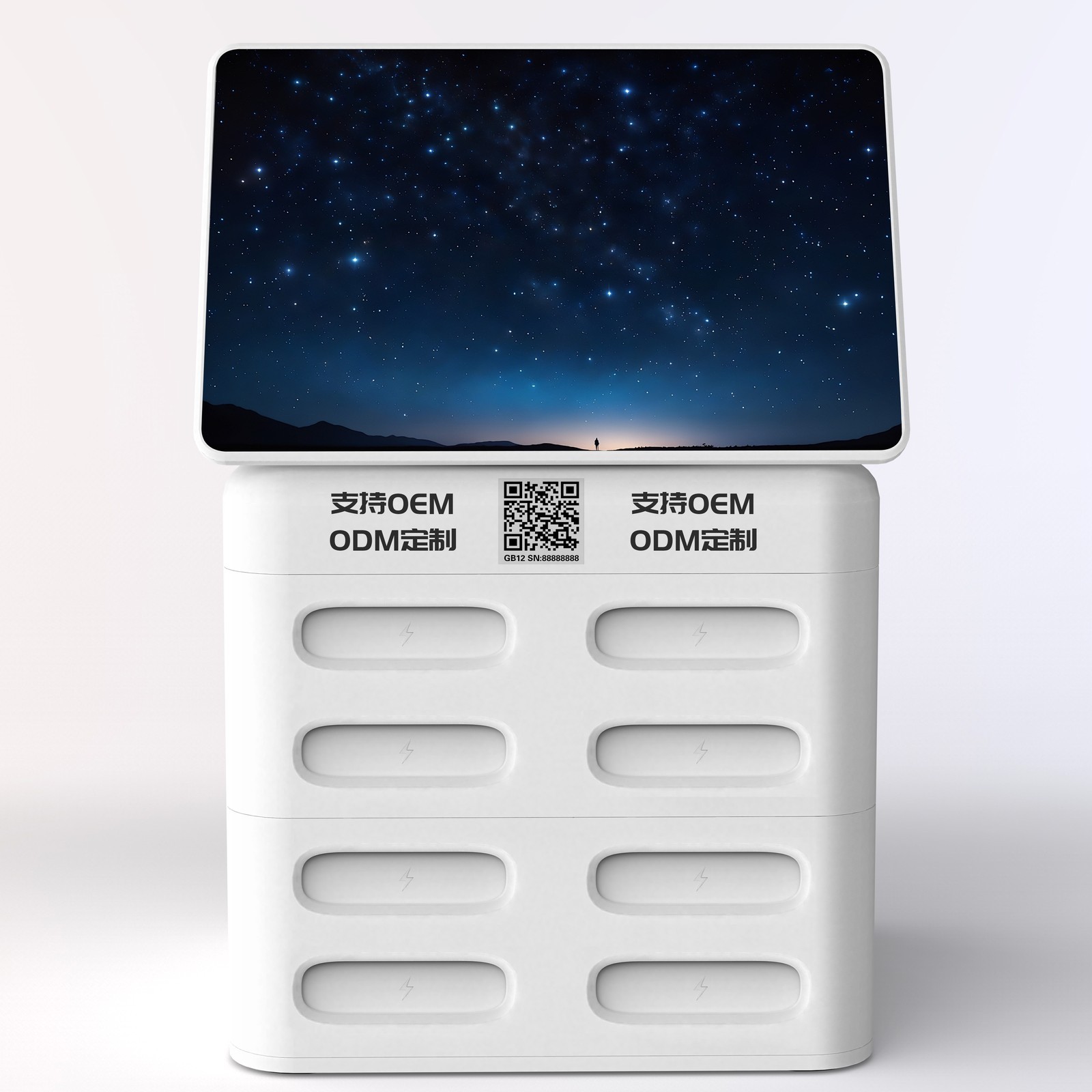

8-Slot Power Bank Sharing Station with Advertising Screen

Home › Power Bank Sharing Stations › 8-Slot Power Bank Sharing Station with Advertising Screen

Model FT-0289-8S  |  8 slots  |  Rooftop HD advertising screen  |  22.5 W fast charge  |  OEM/ODM private label

Product Overview

The 8-slot power bank sharing station with advertising screen is a standard 8-slot station with an HD display built into the rooftop. Electrically and mechanically it stays on the 0289 platform: eight bays, a 4G CAT1 module, AC 220 V input, mixed 5,000 / 7,500 / 8,000 mAh fast-charge power banks, an in-house 22.5 W fast-charge chip that reaches about 80% in 30 minutes, and a UL 94 V-0 flame-retardant housing certified to CCC under GB 47372-2026.

The screen changes what the device earns. The same box that rents power banks also becomes a programmable advertising position, so a venue with existing media sales — a mall, a cinema, a chain store — can monetise the footprint twice over. Content is pushed from the cloud dashboard alongside the rental data, which means one login manages both the rental fleet and the screen loop.

Because Honeycomb Era builds the station, the power banks and the software in-house, screen size, installation structure and the surrounding housing can all be adjusted to a project, and the management software can be deployed independently under your own brand.

Key Features

• Rooftop HD advertising screen — plays brand and merchant creatives on rotation, turning a rental point into a screen position with its own media value.
• Two revenue streams on one footprint — power bank rental income plus advertising inventory, sharing the same power supply, network link and service visit.
• Content managed from the cloud — playlists are updated remotely through the same dashboard that tracks rental orders.
• Anti-stacking housing — other brands' power banks cannot be stacked on the station, while your own still fit.
• IR slot locking — automatic read on insertion with a low mis-read rate, reducing returned-but-unsettled complaints.
• Bay doors — keep grease, dust and foreign objects away from the contacts and cut maintenance cost.
• 22.5 W fast charging — in-house fast-charge chip compatible with PD 3.0 / QC 4.0; 0-80% in about 30 minutes.
• UL 94 V-0 housing plus CCC — meets the admission requirements of malls, cinemas, KTVs and other commercial venues.
• Reverse power feed — during a mains outage the power banks can power the station (requires M80H-class power banks).

Technical Specifications

Dimensions and net weight are the shared values of the 0289 series 8-slot station. Because the screen model adds a rooftop display, overall height, net weight and full-load power change accordingly — allowance should be made for the additional load, and final specifications are confirmed against the production unit.

Applications

Malls, cinemas, chain stores, hotel lobbies and commercial complexes — venues that need both a power bank rental point and brand or advertising exposure. The rooftop screen can run your own brand content or be sold to merchants as advertising inventory. Eight bays balance footfall against rental volume, and the cloud dashboard manages both the devices and the screen playlists.

OEM / ODM Customization

• Housing and shell colour, logo silk-screening, structural and appearance design.
• Rooftop screen size and mounting structure customized; screen content updated remotely from the dashboard.
• Independent deployment of the management software (delivered in 7 days), open API/SDK, own-brand mini-program or app.
• Standard models can be mixed in a single order; first-article samples in 15 days, mass production in 45 days.

Certifications & Compliance

CCC under China's GB 47372-2026 standard for shared power banks · housing rated UL 94 V-0 (highest flammability grade) · CE and FCC for export builds · cells sourced from ATL, EVE Energy and Ganfeng Lithium.

FAQ

How does the screen model differ from the standard 8-slot station?

The core charging and electrical parameters are identical — eight slots, 4G CAT1, AC 220 V, 22.5 W fast charge, UL 94 V-0 housing with CCC certification. The difference is the rooftop HD screen, which increases overall height, net weight and full-load power. Final specifications are confirmed against the measured production unit.

What can the screen display?

Image and video playlists. Use it to promote your own brand, or sell the position to merchants as advertising inventory. Content is updated centrally from the cloud dashboard.

Can the screen size be customized?

Yes. Screen dimensions and the mounting structure can be adapted to a project; the exact size and structure are confirmed with sales.

Where does the screen model work best?

Malls, cinemas, chain stores and hotel lobbies — places that need a rental point and brand exposure at the same time. Eight bays balance footfall against rental volume.

What safety rating does the housing carry?

UL 94 V-0 flame-retardant material with CCC certification under GB 47372-2026, which satisfies venue admission requirements at malls and cinemas.

What is the power requirement?

AC 220 V from a standard socket. The base station draws about 6 W on standby and 45 W at full load; full-load consumption rises with the screen specification, so we recommend leaving headroom in the circuit.

What is the MOQ and lead time?

Small-batch wholesale and OEM orders are both supported; the exact MOQ is confirmed with sales. For standard stations, first-article samples take 15 days and mass production 45 days.

Can I order a private-label version?

Yes. Housing appearance and logo, signage artwork, independent software deployment and a branded app or mini-program can all be customized.
