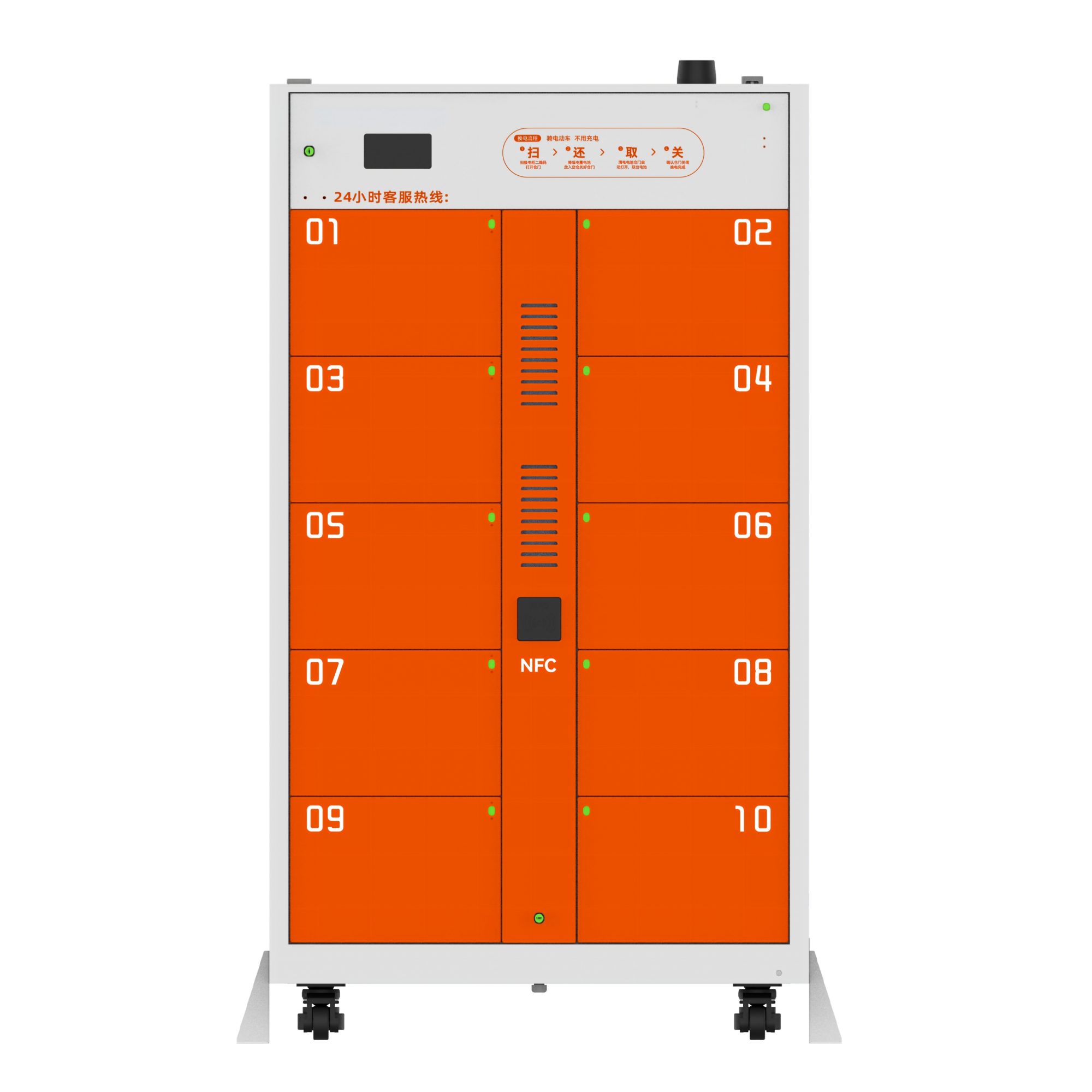

10-Bay E-Bike Battery Swap Cabinet (Water-Based Fire Suppression)

Home › Battery Swap Cabinets › 10-Bay E-Bike Battery Swap Cabinet (Water-Based Fire Suppression)

Model FT-HD10  |  10 bays  |  Water-based fire suppression  |  IP54  |  -30 °C to +55 °C  |  Offline swap via Bluetooth / NFC  |  OEM/ODM

Product Overview

The 10-bay e-bike battery swap cabinet is Honeycomb Era's high-capacity model, aimed at the dense rider clusters that form around core commercial districts, large delivery bases, industrial parks, universities and major residential compounds. Ten bays let a single cabinet serve the morning, lunch and evening peak waves without a queue forming, which is the failure mode that loses riders to a competitor's network.

Every bay is protected by a water-based fire suppression system: an independent bay-level alarm triggers automatic suppression, and the thermal-runaway risk profile is materially lower than that of dry-powder designs. The cabinet is rated IP54 and operates from -30 °C to +55 °C, with optional per-bay heating for cold northern winters. Bluetooth and NFC offline swap are standard, so riders can keep exchanging batteries when the network or the server is unavailable.

On the operations side, a 4G link reports bay status, battery health and temperature to a cloud platform that handles battery dispatch, automated maintenance work orders, hotspot and loss analysis, and OTA upgrades, with an open API for integration with regulator-facing systems. Honeycomb Era manufactures the cabinet in its own 270,000 m² sheet-metal industrial park in Xuzhou, Jiangsu Province, with a monthly capacity of 2,000 e-bike battery swap cabinets, and supplies the whole line as an OEM/ODM build.

Key Advantages

• Water-based fire suppression — independent per-bay fire alarm with automatic suppression, a significantly lower thermal-runaway risk profile than dry-powder systems.
• Offline swap keeps working — Bluetooth and NFC offline exchange is standard, so a network outage or server failure does not stop the service.
• Wide operating temperature — -30 °C to +55 °C, with optional per-bay heating so capacity does not drop in a northern winter.
• Cloud management — live bay, temperature and network monitoring, OTA upgrades and an API for integration with regulator platforms.
• Ten bays per cabinet — roughly 25% more riders served per location than an 8-bay cabinet, which reduces the number of sites needed for the same coverage.
• In-house manufacturing — a 270,000 m² sheet-metal industrial park in Xuzhou covering sheet-metal fabrication, powder coating, tooling, injection moulding, wire harness and final assembly, with 2,000 cabinets per month and lead times under our own control.

Technical Specifications

Specifications are the standard configuration of the FT-HD10. Cabinet colour, logo, optional modules and the software deployment are customizable; final specifications are confirmed against the production unit and the site survey.

Applications

Core commercial districts, large delivery and courier bases, industrial parks, universities and large residential communities — the dense rider clusters that justify a high-capacity node. As a hub in a larger swap network, a 10-bay cabinet absorbs the peak waves so that satellite cabinets stay replenished. Deployed alongside a wall-mounted e-bike charging station, it also covers riders who prefer slow charging to swapping.

OEM / ODM Customization

• Cabinet colour, logo silk-screening, structural and appearance design.
• Independent deployment of the management software, open API/SDK, own-brand mini-program or app.
• Optional camera, display, rain canopy and per-bay heating configured per project.
• Standard cabinets can be mixed in a single order; first-article samples in 15 days, mass production in 45 days.

Certifications & Compliance

Product tested to GB/T 42236.1-2022 · fire-suppression design independently assessed · cells certified to CCC, CE and FCC · electrical safety aligned with IEC practice · lightning protection to GB/T 17626.5 level 3 or above.

Certification scope for a specific order, including any market-specific approvals for your destination country, is confirmed in writing with your sales contact.

FAQ

How is the 10-bay cabinet priced?

Priced per project against the confirmed configuration — bay count, fire-suppression option, display, camera and canopy. Volume orders receive tiered pricing. Send us your site plan and we will return a quotation.

Should I choose the 10-bay or the 8-bay cabinet?

The 10-bay cabinet is physically larger (670 x 1707 x 600 mm) and serves around 25% more riders per location, which suits very large delivery bases and core commercial districts. The 8-bay cabinet is the better fit for standard locations and smaller footprints.

Can riders still swap batteries when the network is down?

Yes. Bluetooth and NFC offline exchange is standard across the range, so users can complete a swap while the network is offline or the server is down.

Which batteries are supported?

Mainstream 40 V, 60 V and 72 V lithium packs, with battery presence detection and adaptive communication protocol negotiation. Contact our technical team with your battery specification.

How much floor space does a cabinet need?

The unit measures 670 x 1707 x 600 mm and weighs 115 kg, giving a footprint of approximately 0.4 m². Allow additional clearance in front of the bay doors for rider access and maintenance.

What is the lead time?

First-article samples in 15 days and mass production in 45 days. Standard in-stock models can ship sooner; the exact schedule is confirmed against the production plan agreed with sales.

Can I order a private-label version?

Yes. Cabinet appearance, logo, independent software deployment and a branded app or mini-program can all be customized. Ask us for an OEM/ODM proposal.
