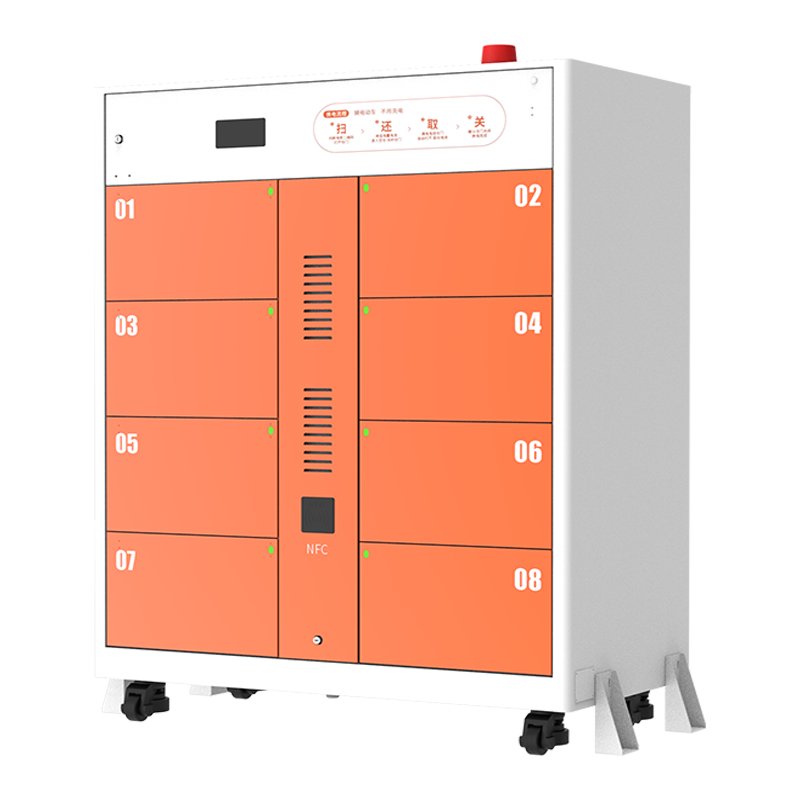

8-Bay E-Bike Battery Swap Cabinet (Water-Based Fire Suppression)

Home › Battery Swap Cabinets › 8-Bay E-Bike Battery Swap Cabinet (Water-Based Fire Suppression)

Model FT-HD8  |  8 bays  |  Water-based fire suppression  |  IP54  |  -30 °C to +55 °C  |  Offline swap via Bluetooth / NFC  |  OEM/ODM

Product Overview

The 8-bay e-bike battery swap cabinet is the standard node in a battery swapping network. It is sized for core commercial districts, delivery bases, industrial parks and residential clusters where demand is continuous but does not require the throughput of a ten-bay hub — and it fits the kind of pavement footprint that municipal approvals are actually granted for.

Safety is the deciding factor in battery swapping, and this cabinet is built around it. Each bay has its own water-based fire suppression circuit: an independent bay-level alarm triggers automatic suppression, and the thermal-runaway risk profile is materially lower than dry-powder systems. The enclosure is rated IP54 against dust and water ingress, and the operating range of -30 °C to +55 °C is backed by optional per-bay heating for northern winters. Bluetooth and NFC offline swap come as standard, so a network outage or server failure does not interrupt the service.

A 4G module feeds bay status, battery health and temperature into a cloud platform covering battery dispatch, automated maintenance work orders, hotspot and loss analysis and OTA upgrades, with an open API for integration with regulator-facing systems. The cabinet is produced in Honeycomb Era's own 270,000 m² sheet-metal industrial park in Xuzhou, Jiangsu Province, which covers sheet-metal fabrication, powder coating, tooling, injection moulding, wire harness and final assembly, at a monthly capacity of 2,000 e-bike battery swap cabinets.

Key Advantages

• Water-based fire suppression — independent per-bay fire alarm with automatic suppression; a significantly lower thermal-runaway risk profile than dry-powder designs.
• Offline swap keeps working — Bluetooth and NFC exchange is standard, so an offline network or a downed server does not stop riders from swapping.
• Wide operating temperature — -30 °C to +55 °C with optional per-bay heating, so winter capacity does not collapse.
• Cloud management — live bay, temperature and network monitoring, OTA upgrades and an API for regulator platform integration.
• Right-sized footprint — 670 x 1325 x 600 mm and 115 kg, an easier site to secure than a ten-bay hub while still holding eight bays of stock.
• In-house manufacturing — a 270,000 m² sheet-metal park in Xuzhou with 2,000 cabinets per month and lead times under our own control.

Technical Specifications

Specifications are the standard configuration of the FT-HD8. Cabinet colour, logo, optional modules and the software deployment are customizable; final specifications are confirmed against the production unit and the site survey.

Applications

Core commercial districts, delivery and courier bases, industrial parks, universities and large residential communities — as a standalone node or as a satellite to a larger hub. Paired with a 12-port wall-mounted e-bike charging station, one site can serve both riders who swap and riders who prefer to charge their own pack.

OEM / ODM Customization

• Cabinet colour, logo silk-screening, structural and appearance design.
• Independent deployment of the management software, open API/SDK, own-brand mini-program or app.
• Optional camera, display, rain canopy and per-bay heating configured per project.
• Standard cabinets can be mixed in a single order; first-article samples in 15 days, mass production in 45 days.

Certifications & Compliance

Product tested to GB/T 42236.1-2022 · fire-suppression design independently assessed · cells certified to CCC, CE and FCC · electrical safety aligned with IEC practice · lightning protection to GB/T 17626.5 level 3 or above.

Certification scope for a specific order, including any market-specific approvals for your destination country, is confirmed in writing with your sales contact.

FAQ

How much does an 8-bay battery swap cabinet cost?

Pricing depends on the configuration — bay count, fire-suppression option, display, camera and canopy. We quote per project and offer tiered pricing on volume orders. Send your site plan and we will return a quotation.

Which batteries does the cabinet accept?

Mainstream 40 V, 60 V and 72 V lithium packs. Battery presence detection and adaptive communication protocol negotiation are built in. Contact our technical team with your battery specification for confirmation.

Can riders swap batteries when the network is down?

Yes. Bluetooth and NFC offline exchange is standard across the range, so riders can complete a swap while the network is offline or the server is down — this is the availability guarantee that keeps a network credible.

What is the lead time?

First-article samples in 15 days and mass production in 45 days. Standard in-stock models can ship sooner; the exact schedule is confirmed against the production plan agreed with sales.

Should I choose the 8-bay or the 10-bay cabinet?

The 8-bay cabinet suits standard locations and constrained footprints. Where demand is very high — large delivery bases or core commercial districts — the 10-bay cabinet serves around 25% more riders per location.

Can I order a private-label version?

Yes. Cabinet appearance, logo, independent software deployment and a branded app or mini-program can all be customized. Ask us for an OEM/ODM proposal.
