Lactation Pod MR3.0 (Mobile Baby Care Room)

Home › Other Products › Lactation Pod MR3.0

Model MMR3.0  |  2,000 x 1,560 x 2,300 mm  |  Relocatable steel-frame unit  |  Changing station + safety seat + nursing armchair + plumbing-free sink  |  220 V plug-in  |  OEM/ODM

Product Overview

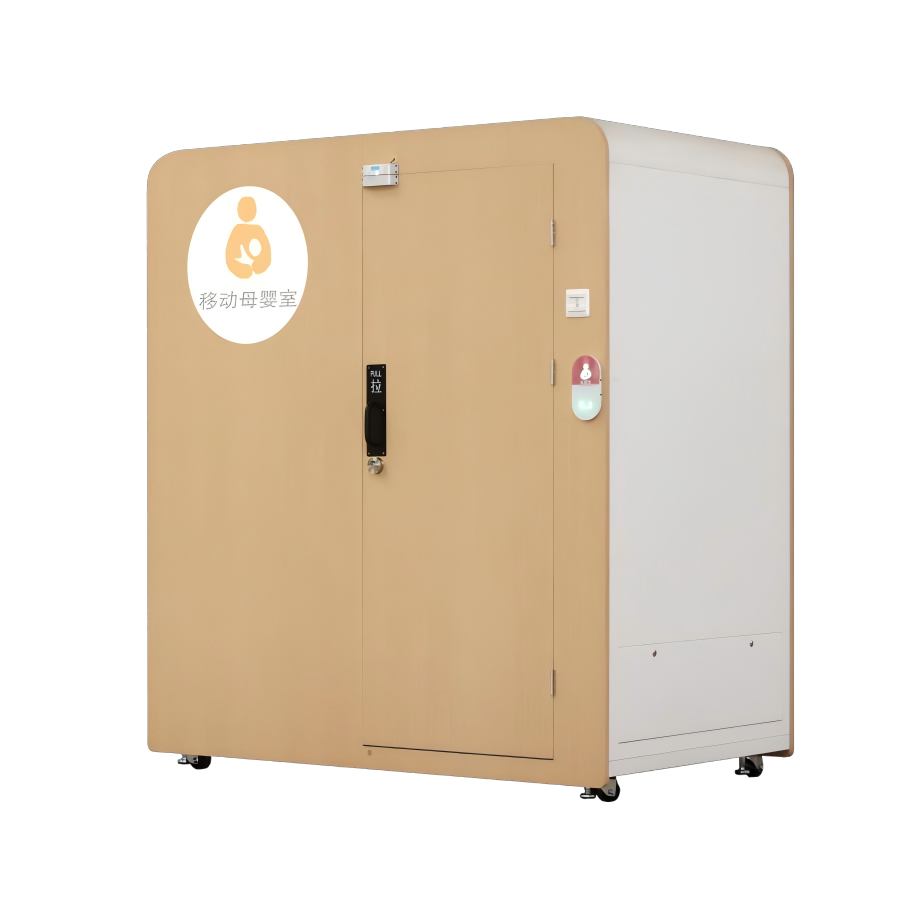

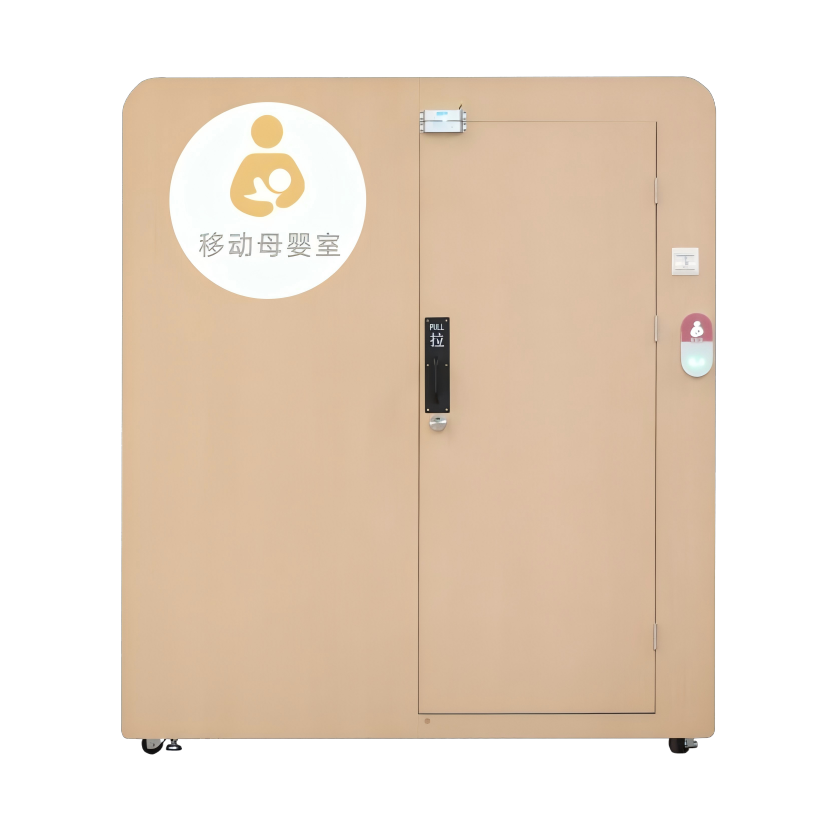

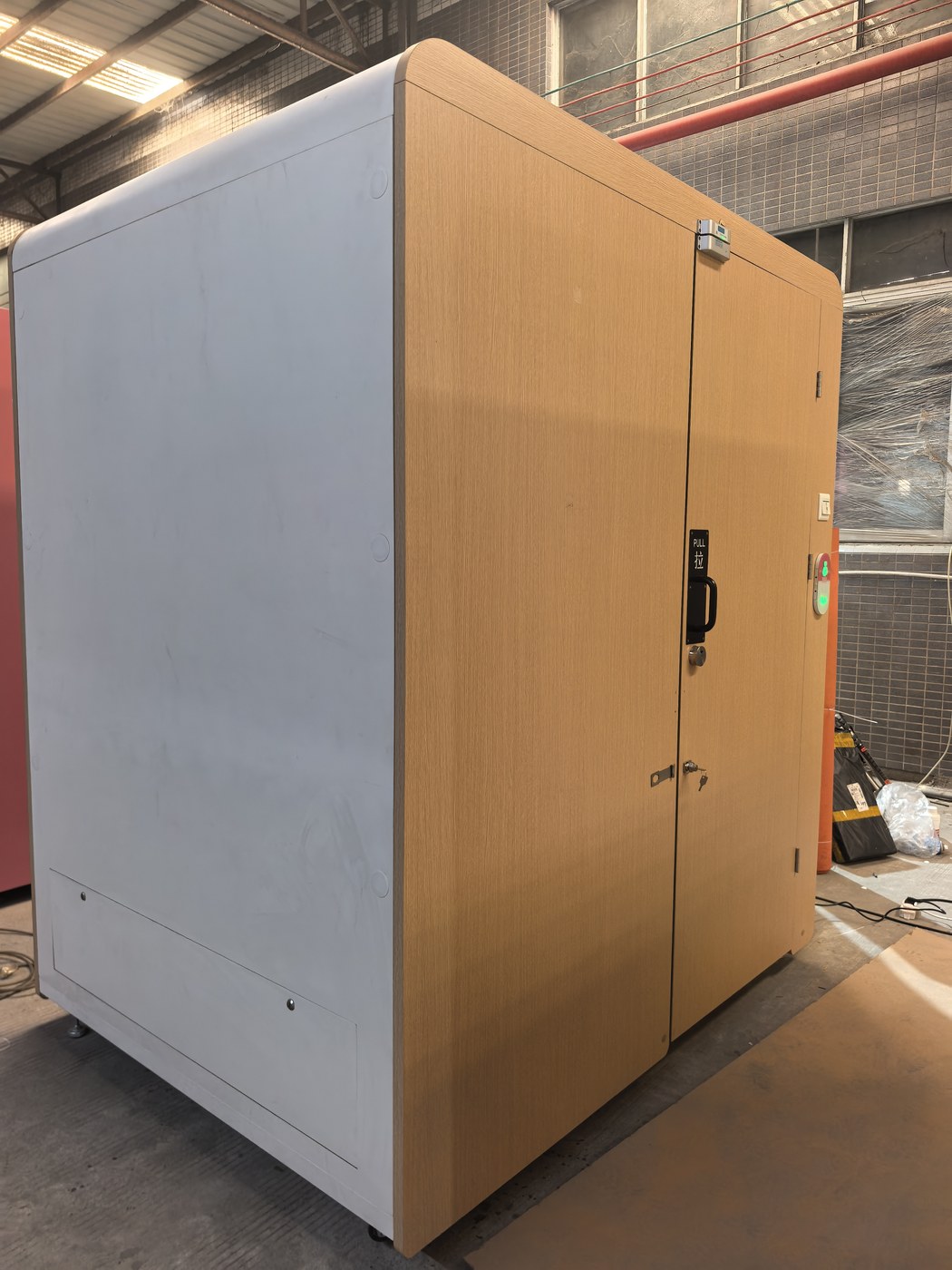

The lactation pod MR3.0 is a self-contained baby care facility for public buildings. It is built as a steel-frame cabin measuring 2,000 x 1,560 x 2,300 mm outside and 1,800 x 1,500 x 2,000 mm inside, with E0-grade pre-finished wood-grain panels achieving a B1 fire rating, a pearl-white exterior finish, a wood-grain soft rubber floor, and castor wheels with locking anchor posts at the base. There is no construction work: set it down, connect the 220 V power lead, and it is in service. When the layout has to change, it rolls to the new position.

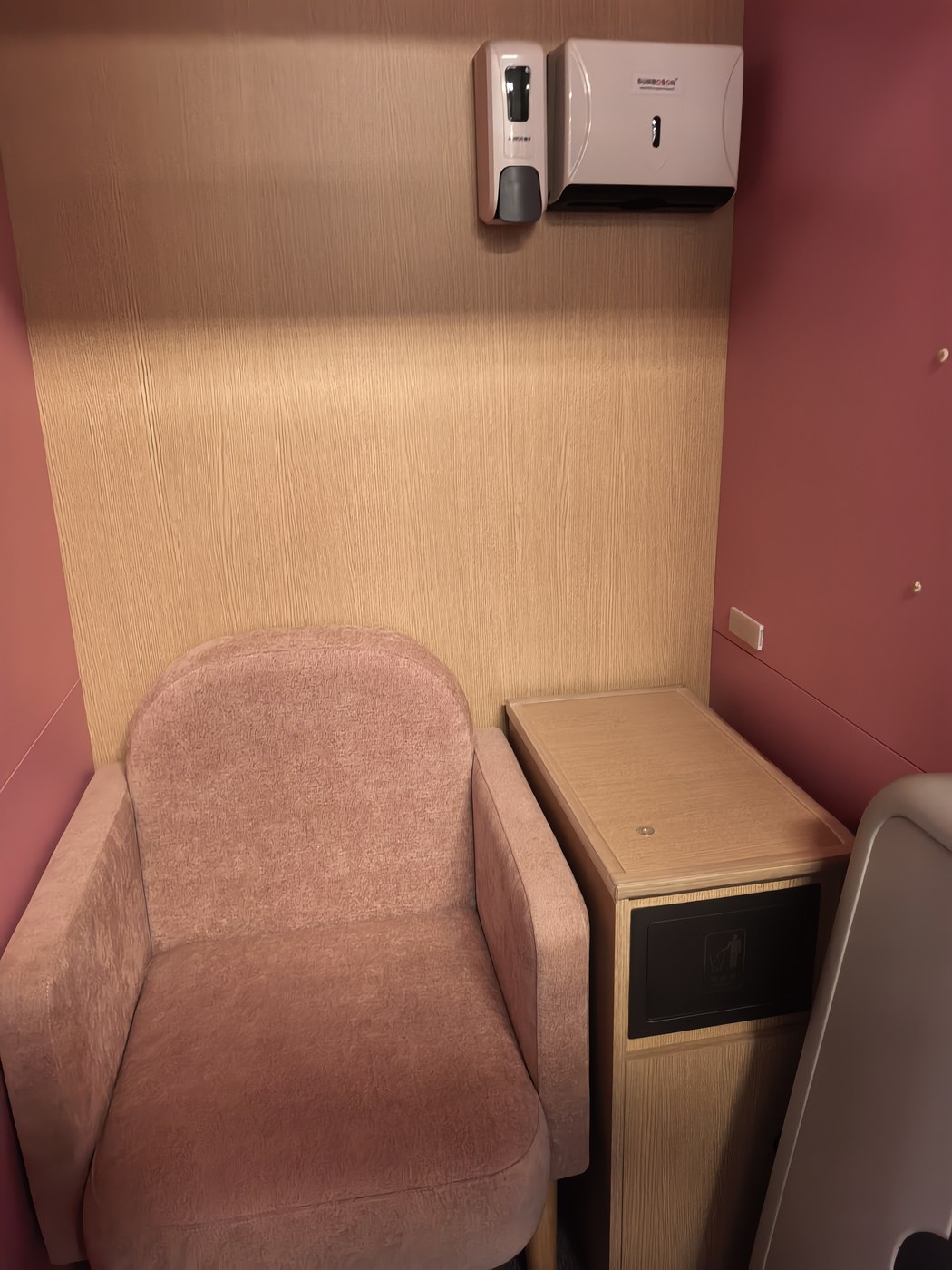

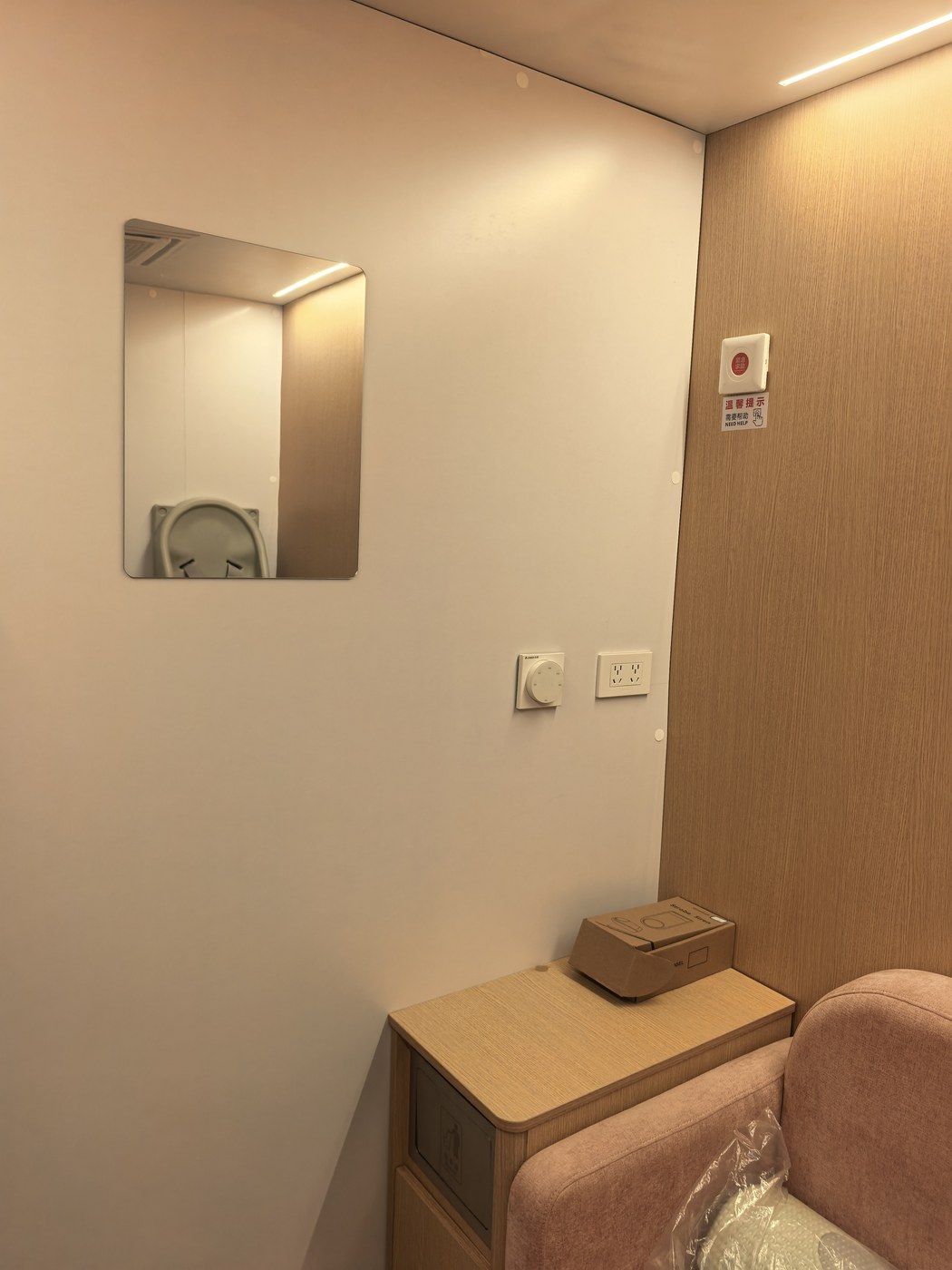

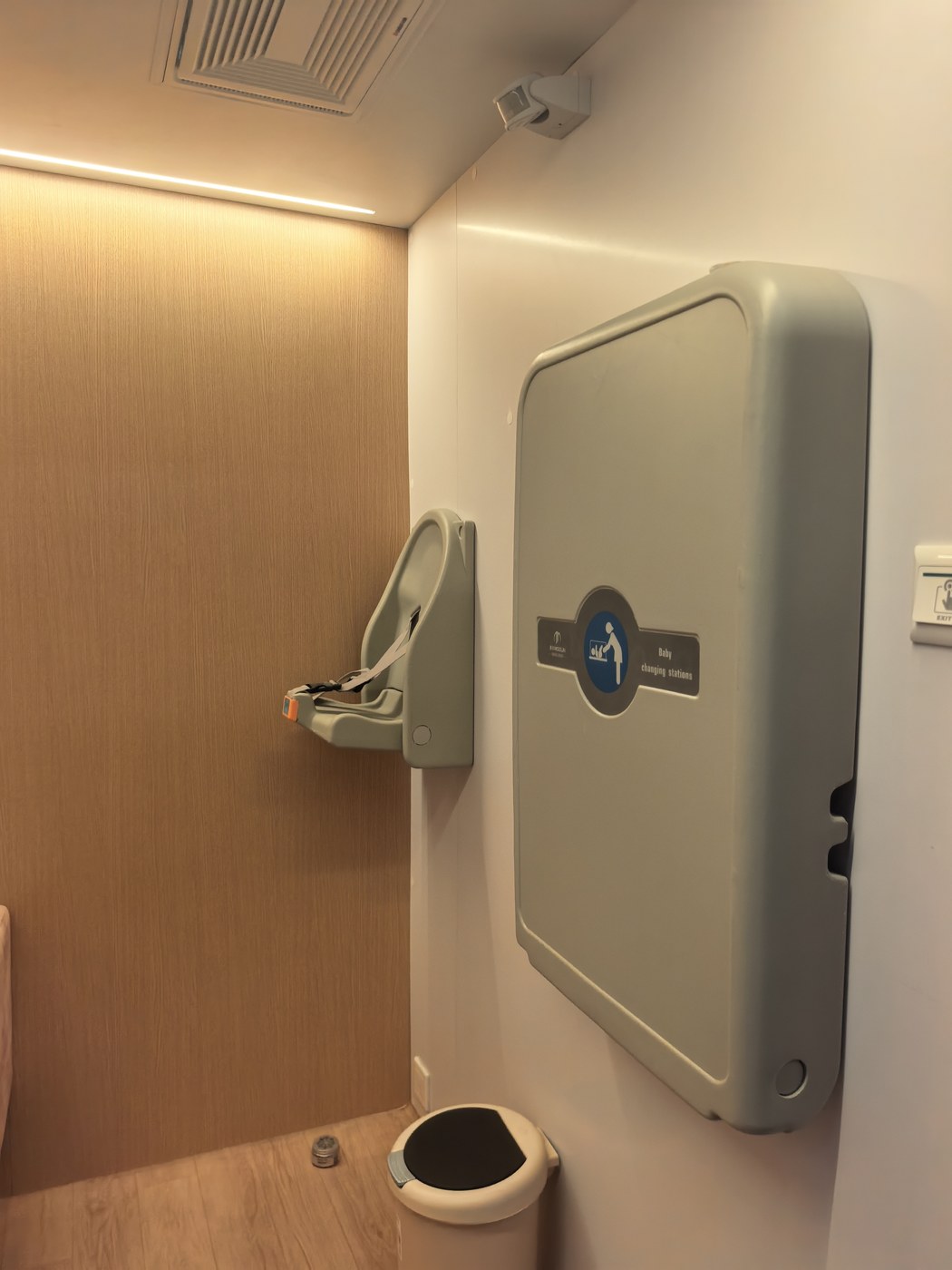

Inside, the layout follows a nursing, changing and cleaning sequence. A nursing armchair with an 800 mm seat width sits alongside a foldable baby changing station and a baby safety seat, both moulded in HDPE with safety buckles. A storage side cabinet with an integrated odour-sealed waste bin, a 10 L sensor-activated mobile hand-wash sink, a no-rinse sanitiser dispenser, a wall-mounted tissue box, a full-length mirror, foldable hooks and a small storage stool complete the fit-out, so a parent can nurse, change a nappy and clean up in a space that would otherwise offer none of those facilities.

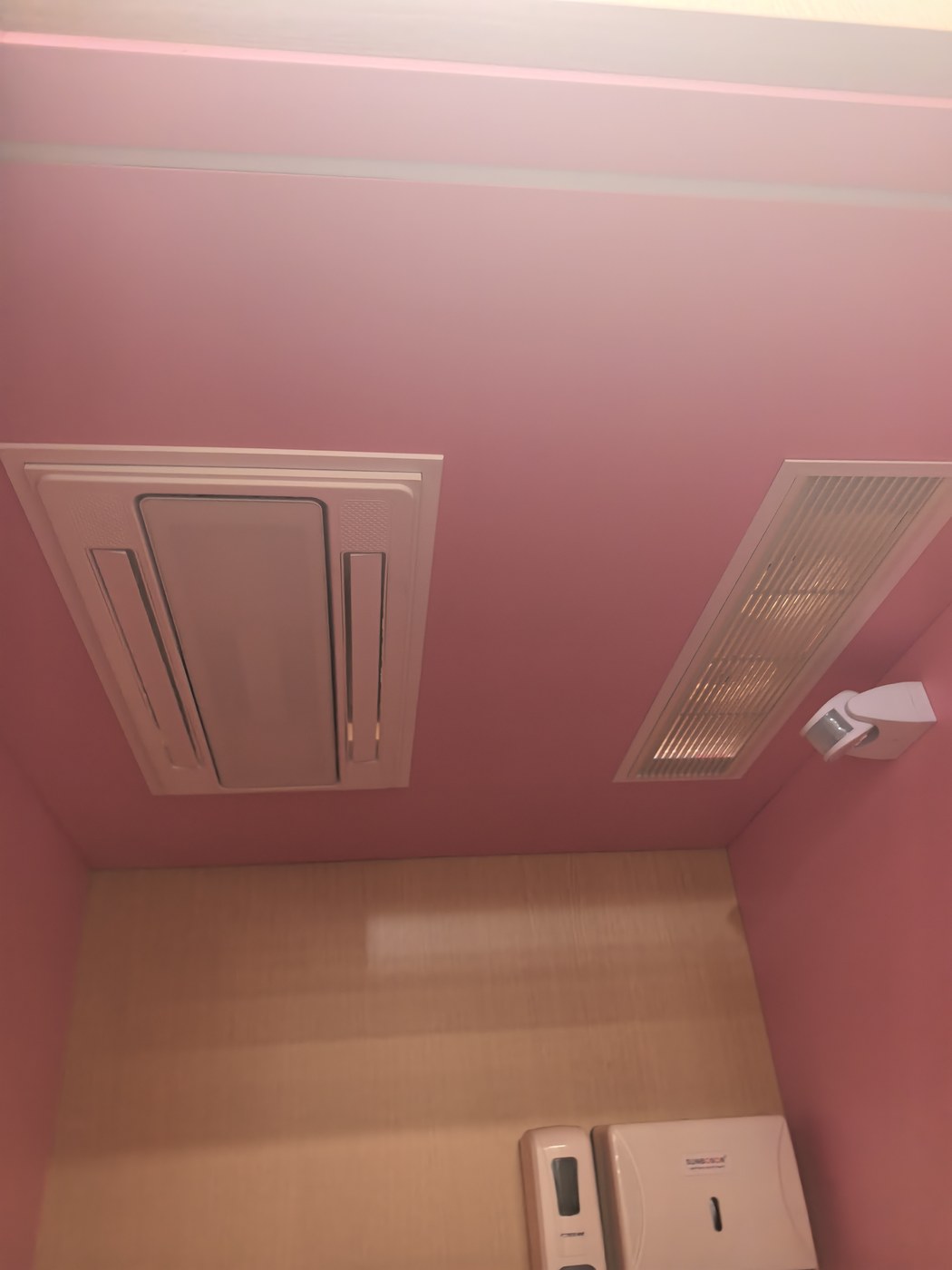

The environment controls are automatic. An infrared sensor switches on the recessed LED warm-white strip and starts ventilation when someone enters. Two independent ventilation systems are fitted — a ceiling fan unit with high and low speeds, dual oscillating louvres, an integrated light and a temperature display, plus a dual-impeller circulation ventilator. When the door is locked, the external "occupied / vacant" display switches in step, so nobody opens the door on an occupied room.

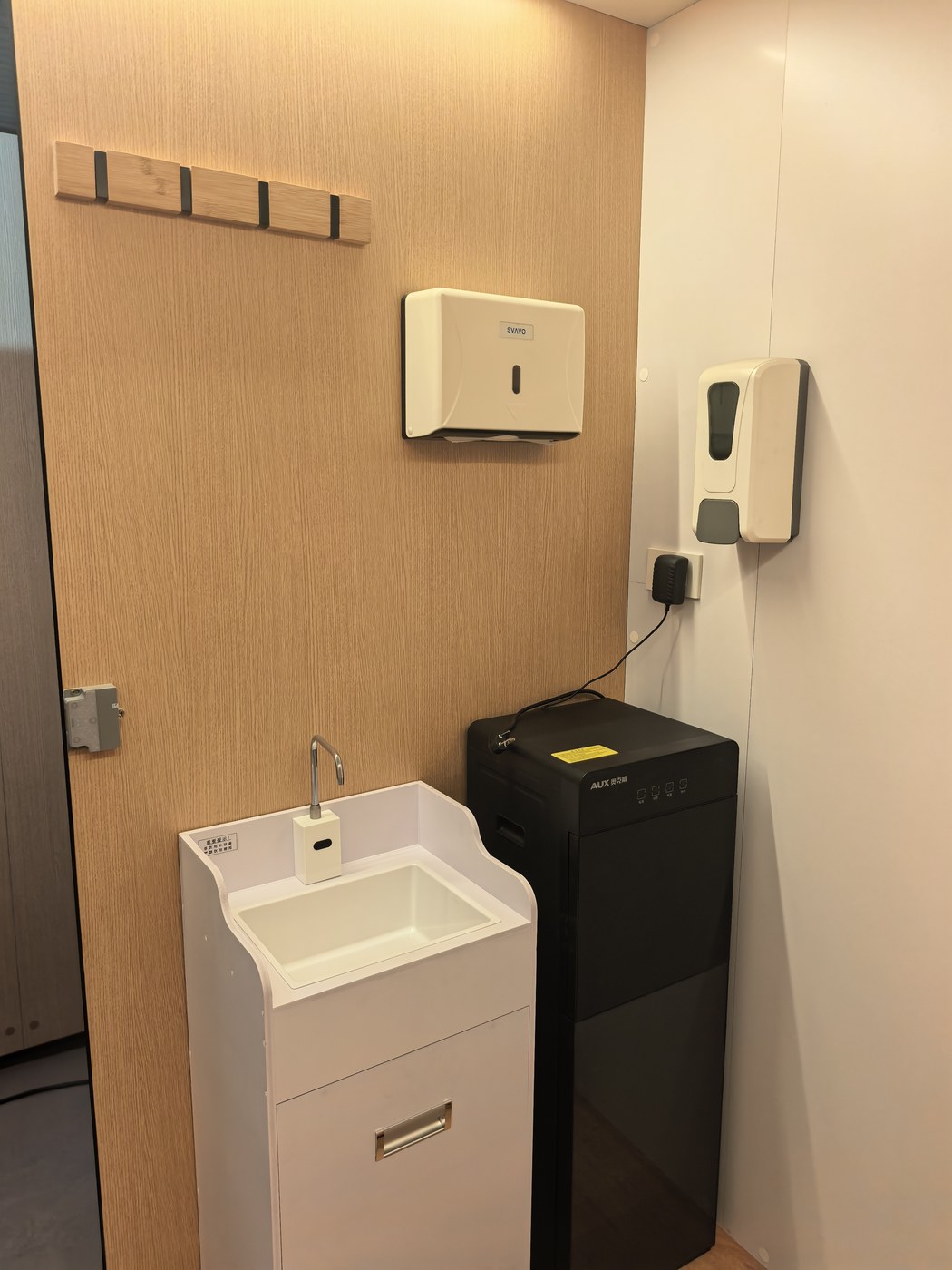

The sink matters as much as the cabin. In many public buildings the obstacle to a nursing room is not space but water: there is no drain and no supply near the intended location. Because the MR3.0 carries its own 10 L fresh-water and waste-water tanks and uses sensor-activated flow, a cleaning point can be installed where no plumbing exists — the tanks are simply topped up and emptied on a maintenance round. Honeycomb Era manufactures the unit and offers it as a standard product or an OEM/ODM build with customized colours, artwork and internal configuration.

Key Features

• Relocatable, no construction — factory-prefabricated cabin delivered assembled or in components, with castor wheels and locking anchor posts. Connect to power and use; reposition it whenever the floor plan changes.
• Complete baby care fit-out — nursing armchair, baby changing station, baby safety seat, storage side cabinet with an odour-sealed bin, full-length mirror, foldable hooks and a storage stool, all included.
• Plumbing-free sensor sink — electric sensor-activated water flow with its own 10 L fresh-water and waste-water tanks. Top up and empty periodically; no supply or drain connection required, which solves the usual obstacle in public buildings.
• Infrared lighting and ventilation — recessed LED warm-white strip switches on automatically when a user is detected, supported by a ceiling fan unit and a dual-impeller circulation ventilator: two independent ventilation systems.
• Occupancy display — the external occupied / vacant panel changes when the door is locked, backed by internal and external electromagnetic locks and a mechanical internal latch to prevent accidental opening.
• Electrical safety — the main control box includes earth-leakage, short-circuit and earth-fault protection, powered from an external 220 V three-pin socket. Three multi-function sockets are fitted inside (one ten-hole primary and two backups).
• Manufacturer-level customization — exterior colour, acrylic logo disc and internal configuration can all be adapted, with whole-unit wholesale and OEM/ODM supply.

Technical Specifications

Specifications are compiled from the MMR3.0 configuration list. Feasibility and cost of special configurations and custom exterior colours must be confirmed with the factory; final specifications follow the delivered unit and factory parameters.

Applications

Indoor public buildings that need baby care facilities: shopping centres, indoor attractions and scenic-site buildings, transport hubs including high-speed rail stations, airports and bus terminals, maternal and child health institutions and hospitals, government service centres, libraries and cultural venues, exhibition and convention centres, sports venues, office buildings and industrial parks. The unit also suits municipal programmes that are upgrading public service facilities to meet accessibility and civic-service standards.

Configuration Details

OEM / ODM Customization

• Exterior colour, acrylic logo disc (custom icons supported), cabin dimensions and structure.
• Internal configuration adjusted up or down per project: mobile sink, nursing armchair, changing station and other items can be combined to spec.
• Occupancy display and door lock system adjustable to project requirements.
• Delivery either fully assembled or in components for on-site assembly from factory drawings; special configurations are confirmed for feasibility and cost with the factory.

Certifications & Compliance

E0-grade panel material and B1 fire rating on the front and rear panels · electrical protection including earth-leakage, short-circuit and earth-fault devices · CE and FCC available for export builds · factory video tours and sample testing available.

Where a project requires specific national certification or test documentation, this is confirmed in writing with your sales contact before production.

FAQ

What are the dimensions of the MR3.0?

2,000 (L) x 1,560 (W) x 2,300 (H) mm externally, with 1,800 x 1,500 x 2,000 mm of usable internal space — enough for a baby changing station, a baby safety seat and an 800 mm-wide nursing armchair.

Does it need construction work? How is it installed and powered?

No construction work. The cabin is prefabricated and can ship fully assembled, unloaded on site with a forklift, unpacked and connected to a 220 V three-pin socket. Where a doorway is too low for the assembled unit, it ships in components and the factory supplies drawings and tools for a four-person on-site assembly.

How does the sink work without a water supply or drain?

The MR3.0 includes a mobile hand-wash sink with sensor-activated electric water flow and its own 10 L fresh-water and waste-water tanks. Routine maintenance is simply topping up and emptying, so a cleaning point can be provided at locations with no water supply at all.

What is included inside?

Main cabin frame, front panel with external door, rear panel, electrical and lighting system, two ventilation systems, three multi-function sockets, nursing armchair, storage side cabinet with odour-sealed bin, baby changing station, baby safety seat, foldable hooks, storage stool, mobile hand-wash sink, no-rinse sanitiser dispenser, wall-mounted tissue box, full-length mirror, emergency call bell, occupied / vacant display, door lock system and acrylic logo disc.

How do users know whether the room is occupied, and can the door be opened by mistake?

An external occupied / vacant display switches in step with the door lock when a user locks or unlocks the room, and the unit is fitted with internal and external electromagnetic locks plus a mechanical internal latch to prevent accidental opening during use.

Can it be installed outdoors?

The MR3.0 is specified for indoor use and is not suitable for fully exposed outdoor sites. For outdoor locations we recommend a rain canopy or a sheltered position; confirm the arrangement with sales.

What are the lead time and warranty?

Normal lead time is approximately 14 days, depending on the final configuration and current plant capacity. The product carries a 12-month warranty. Special configurations and custom exterior colours should be confirmed for feasibility and cost with your factory contact.

Can the exterior and the logo be customized?

Yes. Exterior colour and the acrylic logo disc can be produced to your artwork, and the internal configuration can be adjusted to the project budget. As the manufacturer we supply the unit both as whole-unit wholesale and as an OEM/ODM build.
